(Merged) TerrainRGB


Overview

These merged tilesets were generated using the process at https://github.com/acalcutt/terrain_merged. This involved generating individual datasets with optimized settings for each. These datasets were then merged using configurations located at https://github.com/acalcutt/terrain_merged/tree/main/merge and a custom version of rio rgbify. This custom version includes a new rio merge command, available at https://github.com/acalcutt/rio-rgbify/blob/merge/.

The "Individual Merged Tilesets" represent the tilesets produced by these configurations. The "Combined Merged Sparse Tilesets" are created by combining these individual files into a sparse tileset, a data structure characterized by varying maximum zoom levels across different geographic regions.

Downloads

Individual Merged Datasets

Dataset Name Size
Europe_Merged_2024_z0-Z13_cubic_webp_mbtiles.torrent ~92GB
France_Merged_2024_z0-Z15_cubic_webp_mbtiles.torrent ~81GB
Italy_Merged_2024_z0-Z14_cubic_webp_mbtiles.torrent ~20GB
Switzerland_Merged_2024_z0-Z16_cubic_webp_mbtiles.torrent ~36GB
MASSGIS_Merged_2024_z0-Z14_cubic_webp_mbtiles.torrent ~888MB

Combined Merged Sparse Datasets

⚠️ Important: Sparse tilesets require special handling. For MapLibre GL JS, send a 410 Gone HTTP status for missing tiles. With TileServer-GL, add a 'sparse' flag to your data source configuration. See documentation →

Dataset Name Size Contents
Europe_JAXA_z0-12_SonnyDTM_z0-Z13_Italy_z0-Z14_France_z0-Z15_Switzerland_z0-Z16_Merged_Sparse_cubic_mbtiles.torrent ~200GB JAXA + Sonny DTM + Italy + France + Switzerland
Planet_Merged_Sparse_2024_z0-Z16_cubic_webp_mbtiles.torrent ~478GB JAXA + Europe + France + Italy + Switzerland + Massachusetts
Planet_Merged_Sparse_2024_z0-Z16_cubic_webp_v2_mbtiles.torrent ~713GB JAXA + Europe + Austria + France + Germany + Italy + Spain + Switzerland + Massachusetts

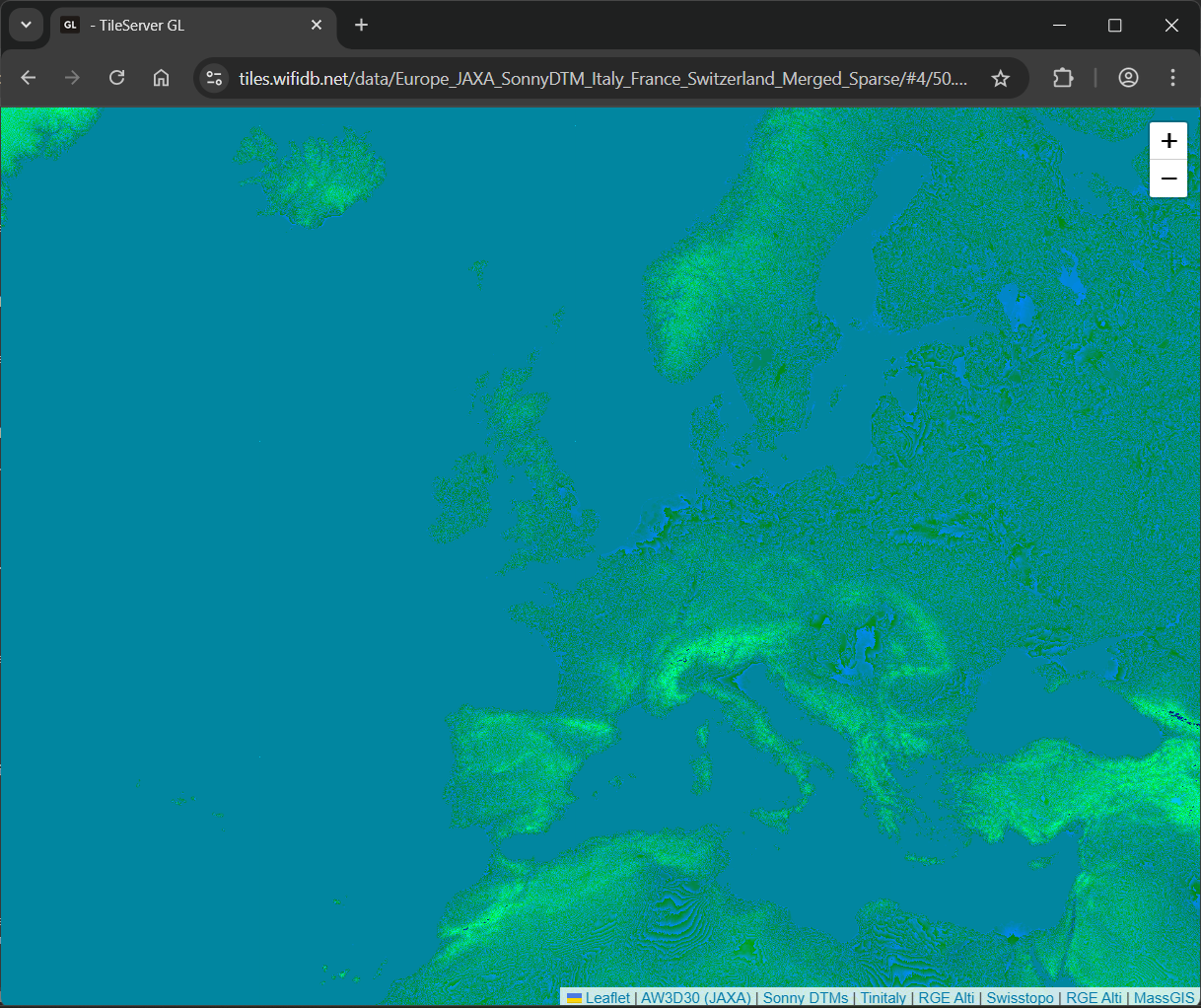

europe_sparse

Source Data

The following table provides details about the source datasets used in generating these tilesets:

Dataset Coverage Resolution Format Description License Link
JAXA AW3D30 Global 30m GeoTIFF Global elevation data. Public Domain (CC0) Link
IGN RGE Alti France 5m & 1m ASC High-resolution elevation data for France. Etalab Open License 2.0 Link
TIN Italy Italy 10m GeoTIFF Digital Terrain Model of Italy. CC BY 4.0 Link
Sonny DTM Europe 20m Unknown Digital Terrain Model for Europe. CC BY 4.0 Link
SwissAlti Switzerland 0.5m GeoTIFF High-resolution elevation data for Switzerland. CC BY 4.0 Link
Italy_Sudtirol Italy 2.5m Unknown Digital Terrain Model for Sudtirol region. Creative Commons CC0 1.0 Universal (CC0 1.0) Link
OpenDTM_DE Germany 1m Unknown Digital Terrain Model of Germany. Multiple Link
Austria Austria 1m Unknown Digital Terrain Model of Austria. CC-BY-4.0 Link
Spain Spain 5m Unknown Digital Terrain Model of Spain. CC-BY 4.0 Link
